PCE 025-6 32A 400V Plug – RED

Description

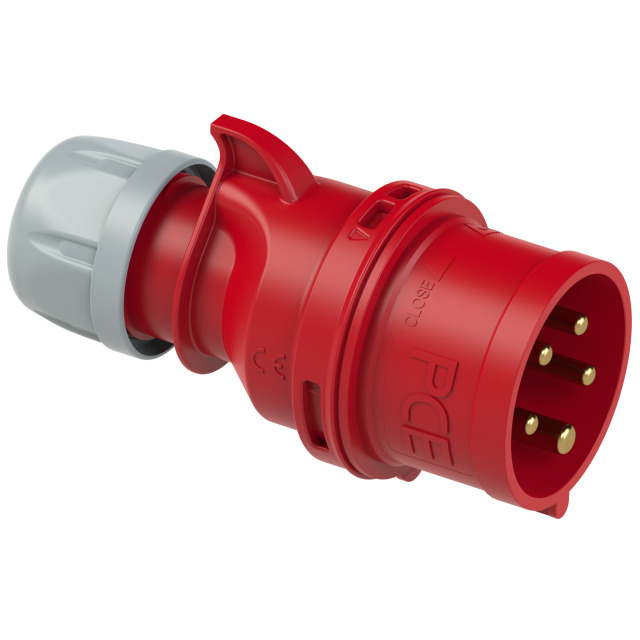

PCE 025-6 32Amp 400Volt 5-Pin IP44 Red CEE Plug (3P+N+E)

The PCE 025-6 is a premium-quality 32 amp 400 volt 5-pin (3P+N+E) male CEE cable plug, designed for safe and dependable three-phase power connections in demanding industrial, commercial and event environments. Manufactured in Austria by PCE, this rugged connector is trusted by professionals across the entertainment, construction, manufacturing and temporary power industries for its reliability and long service life. It forms part of PCE’s renowned SHARK range of industrial connectors, engineered for quick installation and exceptional durability.

Constructed from impact-resistant polyamide with high-quality brass contacts, the PCE 025-6 delivers excellent electrical performance even in harsh working conditions. Secure screw terminals allow fast and reliable cable termination, while the integrated twist cable gland provides effective strain relief and maintains an IP44 ingress protection rating, making it suitable for both indoor and outdoor use where protection against splashing water is required.

Ideal for manufacturing extension leads, connecting generators, powering distribution units or replacing damaged connectors, the PCE 025-6 is fully compatible with standard IEC 60309 (CEEform) 32A 400V three-phase systems.

Key Features

• 32A 400V 5-pin (3P+N+E) male cable plug
• IEC 60309 / CEE industrial connector
• 6h earth position
• Robust SHARK series ergonomic design
• Impact-resistant PA6 polyamide housing
• IP44 rated for indoor and outdoor applications
• High-conductivity brass contacts
• Secure screw terminal connections
• Integrated twist cable gland with strain relief
• Accepts cable diameters approximately 11.5–22mm
• Suitable for 2.5–6mm² conductors
• IK10 impact resistance
• Manufactured in Austria by PCE

Typical Applications

• Three-phase extension leads
• Event and festival power distribution
• Stage and theatre power systems
• Generator connections
• Temporary site power
• Industrial machinery
• Exhibition and marquee installations
• Touring productions
• Workshops and manufacturing facilities
• Power distribution units (PDUs)

Technical Specification

• Manufacturer: PCE
• Model: 025-6
• Series: SHARK
• Current Rating: 32A
• Voltage: 400V AC (3 Phase)
• Poles: 5 (3P+N+E)
• Earth Position: 6h
• Protection Rating: IP44
• Connection Type: Screw terminals
• Contact Material: Brass
• Housing Material: PA6 Polyamide
• Cable Entry: Twist cable gland
• Cable Diameter: 11.5–22mm
• Conductor Size: 2.5–6mm²
• Impact Rating: IK10
• Colour: Red
