Description

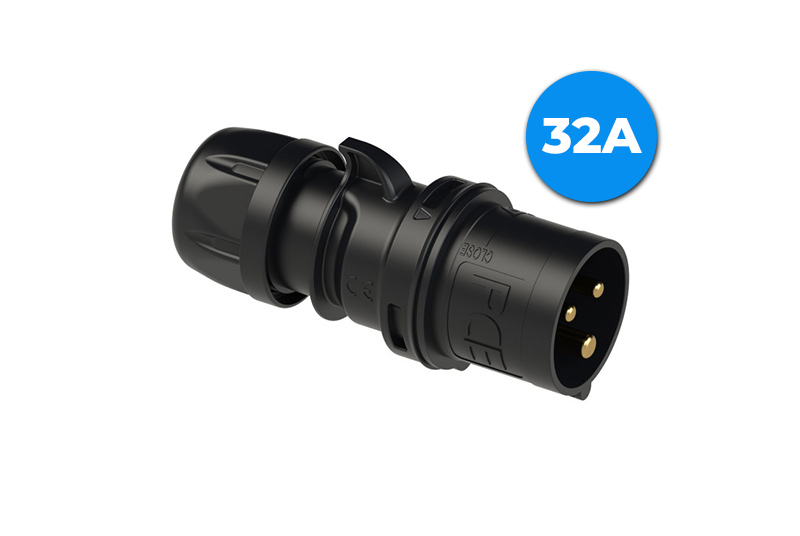

PCE 023-6X 32A 230V 3-Pin IP44 Black CEE Plug (2P+E) | Single Phase

The PCE 023-6X is a professional-grade 32A 230V 3-pin (2P+E) male CEE cable plug, finished in black as part of PCE’s stylish SHARK Midnight range. Designed for reliable single phase power distribution, it combines rugged construction with a sleek appearance, making it ideal for theatres, touring productions, exhibitions, TV studios and premium event installations where black hardware blends seamlessly into the environment.

Featuring a durable impact-resistant PA6 housing, brass contacts and secure screw terminals, the PCE 023-6X provides long-lasting performance in demanding applications. The integrated twist cable gland offers excellent strain relief while maintaining an IP44 rating for protection against splashing water.

Key Features

• 32A 230V 3-pin male plug
• Single phase
• Black SHARK Midnight finish
• IEC 60309 / CEE connector
• IP44 rated
• PA6 polyamide housing
• Brass contacts
• Screw terminals
• Twist cable gland
• Cable diameter: 11.5–20mm
• 2.5–6mm² conductors
• Manufactured in Austria

Typical Applications

• Black event power cables
• Theatre power systems
• Touring productions
• TV and film studios
• Exhibition stands
• Stage power
• Generator leads
• Temporary power distribution

Technical Specification

• Manufacturer: PCE
• Model: 023-6X
• Series: SHARK Midnight
• Current Rating: 32A
• Voltage: 230V AC
• Phase: Single Phase
• Poles: 3 (2P+E)
• Earth Position: 6h
• Protection: IP44
• Housing: PA6 Polyamide
• Contacts: Brass
• Connection: Screw terminals
• Cable Diameter: 11.5–20mm
• Conductor Size: 2.5–6mm²
• Colour: Black
