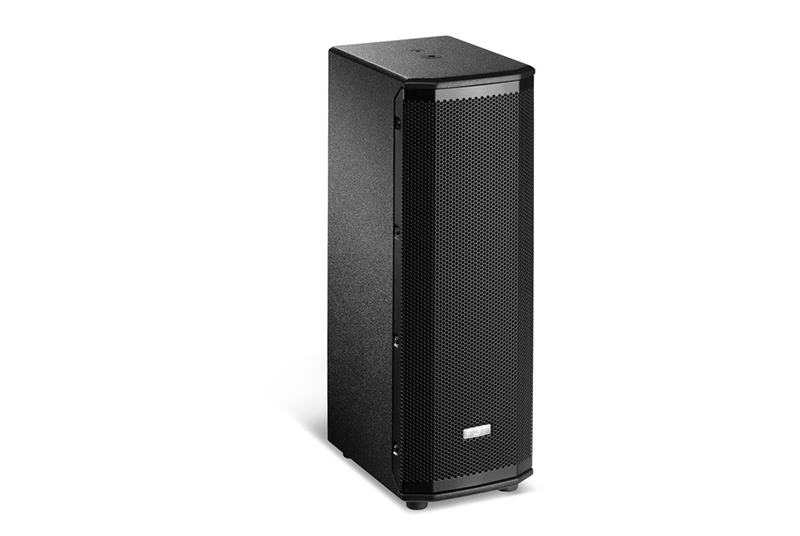

FBT Ventis 206A

Description

2x 6.5″ + 1″ Active Speaker With DSP

The VENTIS 206A can be deployed as a front fill, an under-balcony fill or as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood, the 206a has an integrated rear handle, an optional mounting bracket and, most importantly, an astonishing size to SPL ratio.

The enclosures are as suitable for fixed installation as they are for use on the stage.
M10 mounting points are included as standard while an optional U-bracket can be used for wall-mounting.
For use on the road, the VENTIS models include aluminum handles with rubber inserts, and a 35mm polemount socket.

• Size: 2-way
• Bi-amped
• Speaker components: 2 x 6.5″ woofers, 1″ x tweeter
• 700 W class D (LF) and 200 W class H (HF)
• DSP with 6 presets
• Inputs: XLR / TRS combo jack and RCA (RCA, stereo)
• XLR male link output
• Housing material: 12 mm birch plywood
• Dispersion pattern (nominal): 70° x 50° (H x V, rotatable)
• Frequency response: 70 Hz – 20 kHz (-6 dB)
• Max. sound pressure level (SPL): 131 dB
• Dimensions: 190 x 545 x 260 mm (W x H x D)
• Weight: 12 kg
• Colour: black
