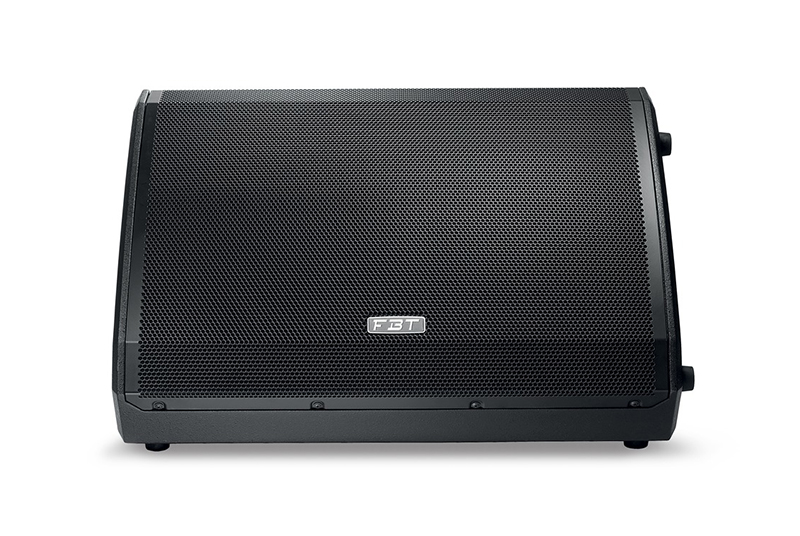

FBT Ventis 115MA – Stage Monitor

Description

15″ + 1″ Conical Active Stage Monitor With DSP

The 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 115MA delivers 132dB SPL in a bass reflex design, using a 15″ coaxial custom woofer with a 2.5″ voice coil, 25mm (1″) B&C throat and 44mm (1.7″) voice coil.

The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38″) stand socket, two integrated carrying handles and an optional wall mount bracket.

• Bi-amped
• Speakers equipped: 15″ Woofer and 1″ tweeter
• Performance: 700 W Class D (LF) and 200 W Class H (HF)
• DSP with 6 presets and 2 freely configureable memory slots
• Housing material: 15 mm birch plywood
• Coverage pattern (nominal): 90° conical
• Frequency range: 55 Hz – 20.000 Hz (-6 dB)
• Max SPL: 133 dB

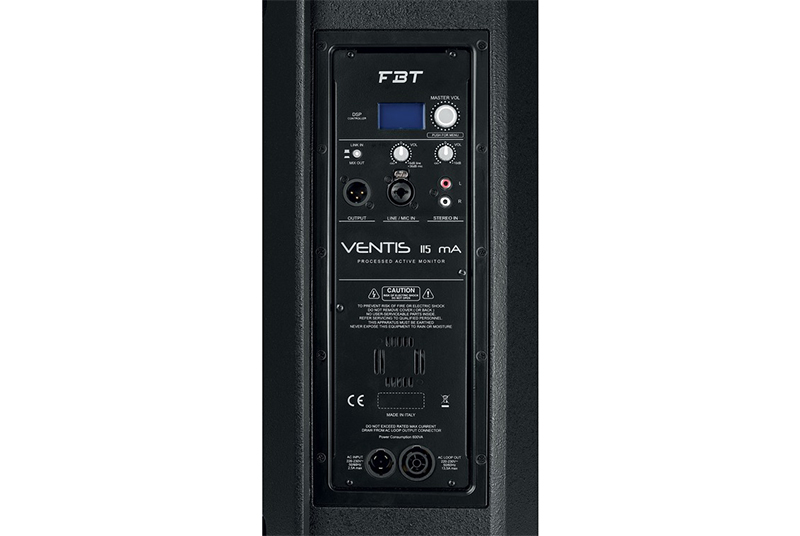

• Inputs: XLR / Jack combined input and RCA (“Cinch” stereo)
• Left output: XLR male
• Dimensions: (W x H x D): 632 x 354 x 516 mm
• Weight: 21.3 kg
• Colour: Black
