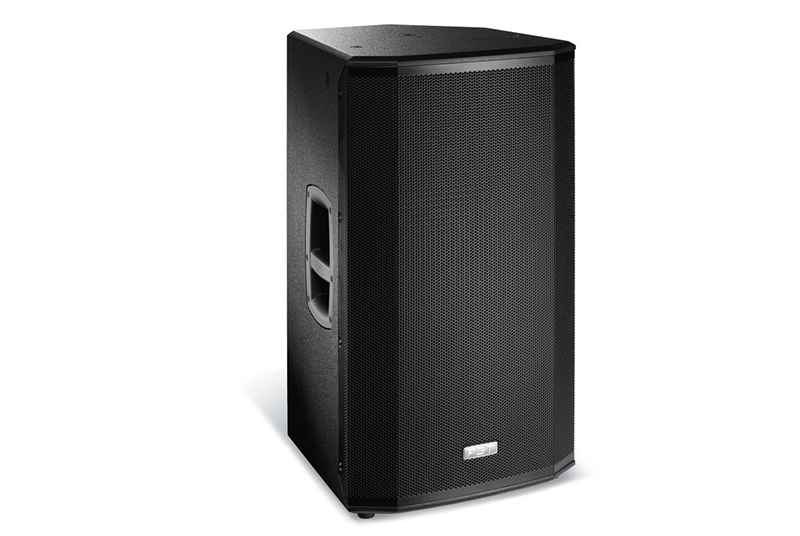

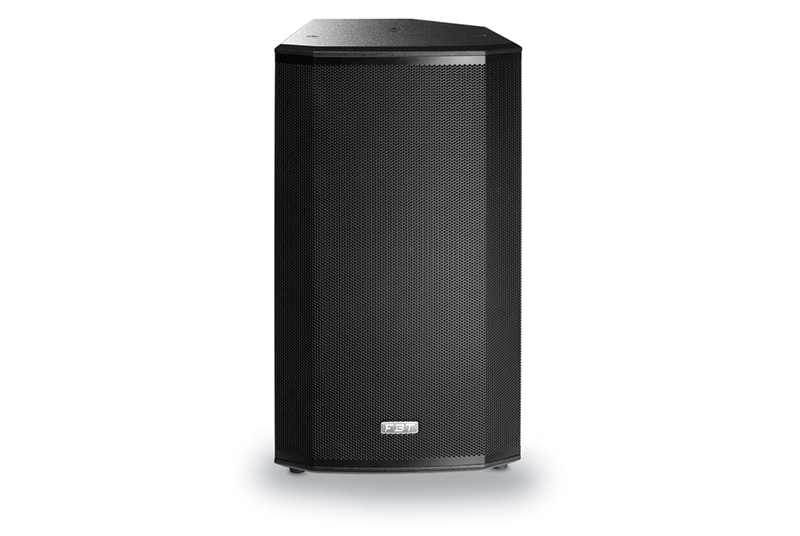

FBT Ventis 115A

Description

15″ + 1″ Active Speaker With DSP

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

• 2-way, bi-amplified, bass reflex design
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
• Digital Signal Processor with graphic display
• 15 mm (0.59″) birch plywood scratch resistant enclosure and internal bracing
• High efficiency switch mode power supply

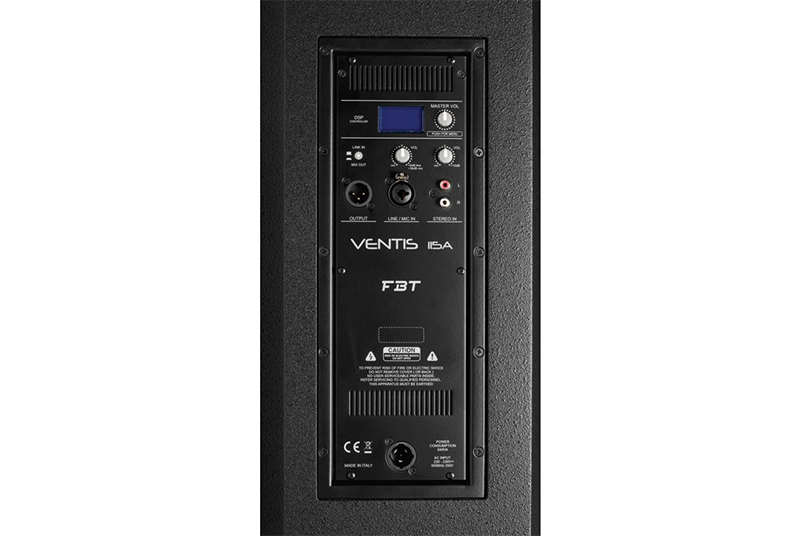

• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
• 380mm (15″) LF woofer with 64mm (2.5″) voice coil, custom made for FBT
• 25mm (1″) exit throat B&C HF compression driver with 44mm (1.7″) voice coil
• Frequency response from 42Hz to 20KHz
• 80°H x 50°V Constant Directivity rotatable Horn
• 6 x M10 suspension points, wall bracket mount thread, 35 mm (1 3/8″) top-hat speaker stand socket, two aluminium handles
• 45° monitor taper
• Adjustable delay between 0 – 10m
• Weight : 25Kg
• Dimensions : 427 x 765 x 420mm
