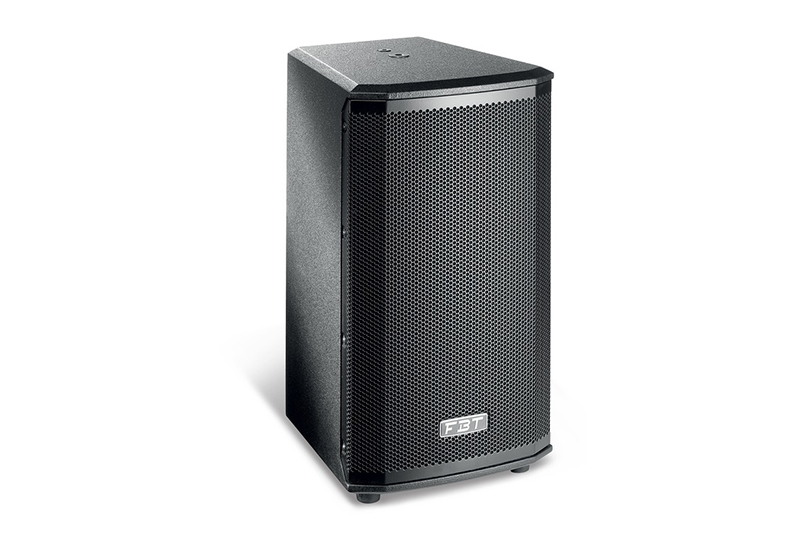

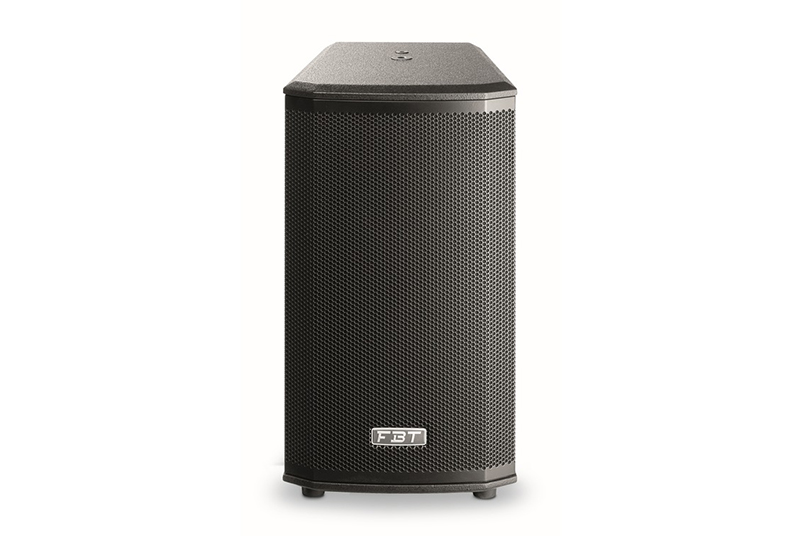

FBT Ventis 108A

Description

8″ + 1″ Active Speaker With DSP

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

The 108A includes a 200mm (8″) woofer and 50mm (2″) voice coil, driven by 700W + 200W bi-amplification to deliver an impressive 131dB SPL from a supremely portable cabinet.

• Bi-amped
• Speaker configuration: 8″ Woofer and 1″ tweeter
• Power: 700 W Class D (LF) and 200 W Class H (HF)
• DSP with 6 presets and 2 freely configurable memory locations
• Housing material: 15 mm Birch plywood
• Beam angle (nominal): 80° x 50° (H x V, rotatable)
• Frequency range: 65 – 20,000 kHz (-6 dB)
• Maximum SPL: 131 dB
• Inputs: XLR / jack combo socket and RCA (“Cinch” stereo)
• Link output: XLR male
• Dimensions (W x H x D): 274 x 500 x 300 mm
• Weight: 13.3 kg
• Colour: Black
