Avolites D3-110

Description

24-Universe Compact Lighting Console with Touchscreen

With a built-in touchscreen and more processing power, D3-110 is ready for bigger shows and tighter schedules. Powered by Titan, it supports 24 universes in a compact, self-contained design that fits into any tour, install or rental fleet. Tough, reliable and fully featured, D3-110 delivers high-end control in a neat package.

• 1x 12.1″, 800nit (cd/m2), WXGA capacitive mutli-touch internal screen with adjustable brightness
• 1x optional up to 4K (UHD) external screen (DisplayPort)
• Compact layout (reduced version of D7 & D9 layouts)
• 10x 60mm playback faders
• 20x C&K flash buttons with custom cap
• 76x backlit Cherry MX Low Profile programming / setup keys
• 3x backlit Cherry MX Low Profile playback paging keys
• 5x backlit Cherry MX Low Profile playback control keys, incl. double-width Go key
• 12x backlit Cherry MX Low Profile macro/executor keys
• 3x high resolution, metal Avo attribute encoders with select buttons
• Support for D3 Wing, T3 Wing, or Titan Mobile Wing
• Support for unlimited D3 Touch
• iOS & Android mobile app (“Titan Remote”)

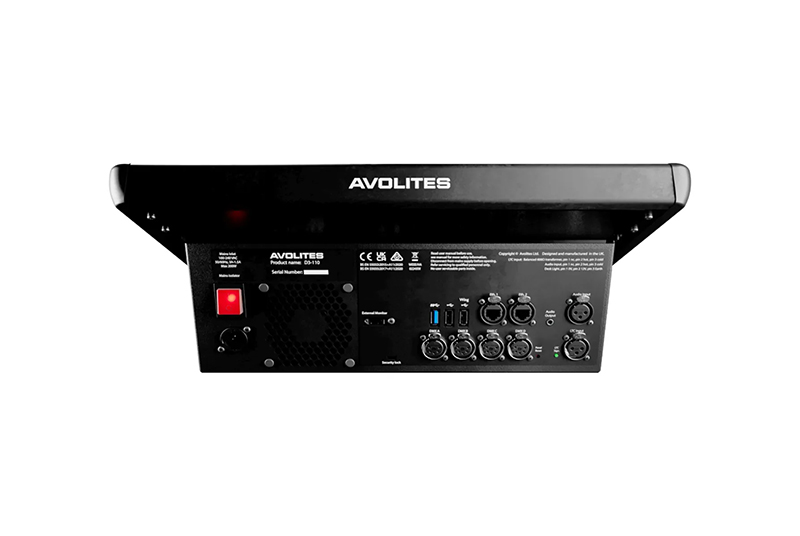

• 4x DMX ports (Neutrik 5-pin XLR)
• 2x EtherCON (Gigabit Ethernet)
• 1x SMPTE LTC port (Neutrik 3-pin XLR)
• 1x Audio Input port (Neutrik 3-pin XLR)
• 1x Audio Output port (6.35 mm (1⁄4”) jack)
• 12V optional Gooseneck
• Kensington Security Lock
• Dimensions (W x D x H):  423 x 468 x 202 mm
• Weight:  8.7 kg
